Evolution Power Tools S355MCS Mitre Chop Saw

Description

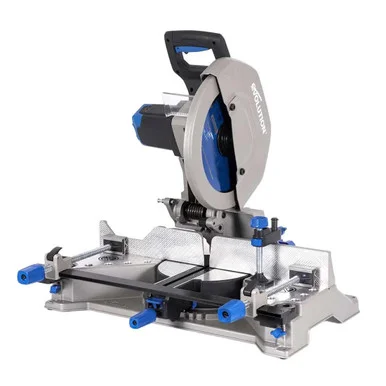

Evolution Power Tools S355MCS Mitre Chop Saw

Built for professionals, the S355MCS Chop Mitre Saw from Evolution is the first 355mm TCT industrial Chop Saw that allows you to produce accurate mitre cuts without having to reposition the workpiece. Designed to tackle heavy cuts in oversized metal pieces, the S355MCS Mitering Chop Saw features a precision adjustable mitre table, 3-position saw head and a unique, height-adjustable double front clamp rail assembly. It delivers precise and quick angle adjustment for easy set-up and a powerful clamping mechanism to ensure quality, repeatable cuts every time. With a powerful 2,200W motor, easy ambidextrous controls, and a Bench Dog compatible base plate with a tough knurled back fence, the S355MCS Mitering Chop Saw is easy to rely on for your toughest jobs.

If your fabrication work relies on your ability to make fast, repeatable, accurate, clean & cost-effective cuts through a wide variety of large diameter metal workpieces, then the S355MCS Mitre Chop Saw is the obvious choice.

Features:

• +/- 46˚ Mitre Range
• Precision Laser Etched Mitre Guide
• Burr Free – Ready To Weld Cuts
• Fine Adjust & Pre-set Mitre Positions
• Height Adjustable Front Clamp Rail
• Sliding QR Front Clamps x2
• 4-Position QR Top Clamp
• Workpiece Support V-Blocks
• 3-Position Cutting Head for optimum cuts
• Bench Dog Compatible Base
• Ambidextrous Trigger
• Knurled Back fence for secure clamping
• Chip Deflector
• Cast Alloy Base

Specifications:

• Motor (240V 50Hz): 2200W
• Speed No Load: 1550 min-1
• Max. Bevel (Left): +/- 46°
• Cable Length: 3m
• Blade Diameter: 355mm
• Number of Teeth: 66
• Bore: 25.4mm / 1 In.
• Kerf: 2.4mm
• Mild Steel Plate (Max Thickness): 12mm
• Stainless Steel Plate (Max Thickness): 5mm
• Square Tube at 90° (Mild Steel): 120 x 120mm
• Square Tube at 45° (Mild Steel): 100 x 100mm
• Rectangle Tube at 90° (Mild Steel): 100 x 165mm
• Rectangle Tube at 45° (Mild Steel): 100 x 110mm
• Round Tube at 90° (Mild Steel): Ø 120mm
• Round Tube at 45° (Mild Steel): Ø 110mm
• Minimum Cut Off Piece Length: 8 mm
• Packaging Dimensions: 450 x 760 x 584mm
• Product Dimensions: 410 x 530 x 310mm
• Product Weight: 35 kg
• Packaged Weight: 40 kg

Noise & Vibration:

• Sound Pressure Level LPA: 94.8 dB(A) K: 3dB(A)
• Sound Power Level LWA: 107.9 dB(A) K: 3 dB(A)
