Description
Quality Bluetooth Amplifier (110W), 10x White Ceiling Speakers Kit
Perfect for bars, restaurants, clubs, cafés, pubs, hotels & at home.

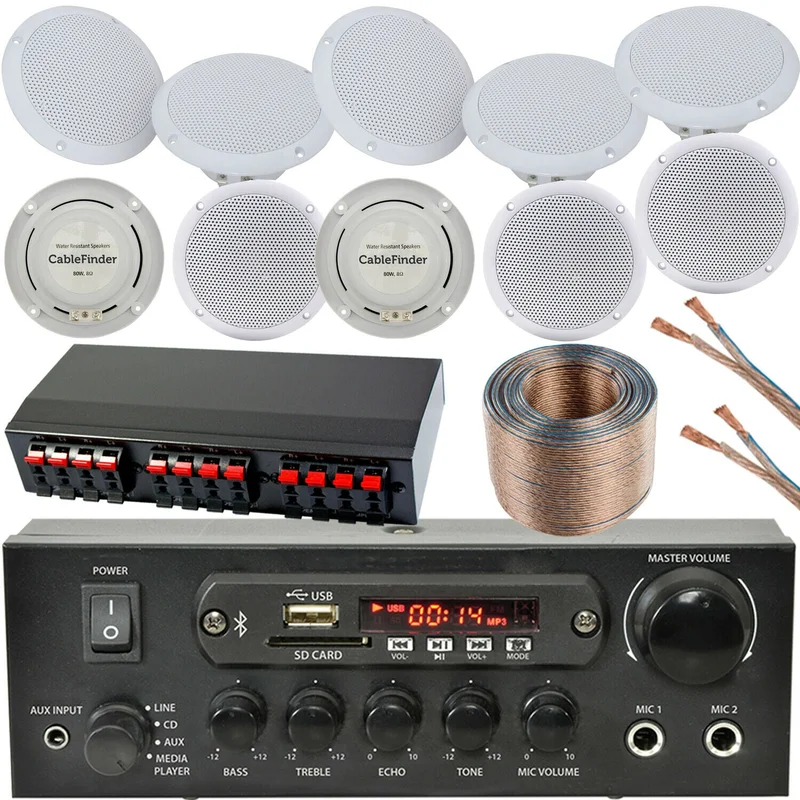

What’s Included?
1x 110W Bluetooth HiFi Amplifier
10x (5 Pairs) 80W White Ceiling Speakers – Moisture Resistant
(Perfect for Kitchens & Bathrooms)
1x 5 Port Speaker Splitter (this provides 5 zones and maintains a true stereosignal)
100m reel of 1.5mm² quality speaker cable (CCA)
1x UK mains power cable
1x Instruction manual
What does it do?
This kit allows you to play music through all 10 speakers whilstmaintaining a true stereo signal. The supplied speaker switch/splitter lets yousplit your installation into Zones. Allowing you to turn off certain rooms atthe push of a button from the amplifier. Please see below for more informationon each product in this kit. Please feel free to contact us if you have any questions.
Overview Amplifier:
Ideal when installed in a bar, restaurant or pub environment, this kitallows you to play music through the 10x 80W wall speakers. Perfect for backgroundmusic during service or for transforming a dining area into a dance floor whenthe tables have been cleared away (providing the space isn’t too large).
This amplifier has a built-in Bluetooth receiver allowing you to connect anydevices you have with Bluetooth (a smart phone with Spotify or a CD Player forexample) wired/wirelessly. This is brilliant for keeping the amplifier hiddenaway in a cupboard. Your device would not need line of sight to play musicthrough the connected speakers. Perfect for at home, in the office or shop andeven for use in professional installs.
The Amplifier has several 2 RCA/PHONO inputs allowing you toconnect devices that are not compatible via Bluetooth. It also has 2xMicrophone inputs on the front of the unit, perfect for a karaoke night.
Equippedwith bass, treble, echo, tone, mic volume and master volume controls. Thisamplifier is very capable for its cost and be used easily bya professional or amateur alike.
Overview Speakers:
Apair of 2-way moisture resistant speakers which are ideal for use in bathrooms,kitchens, living rooms, offices, puns, bars, patios etc. These speakers are 8 Ohm,if you have a 4-8 Ohm stereo amplifier, you can run 2 pairs (4speakers) in parallel with each other and the resistance will still bewithin the limits of the amplifier (4 ohms). If you require 4 of these, we sellthem as a kit, please search our shop or get in touch for more details.
Construction – The cones are constructed from Mylar and Polypropylene witha cloth edge, so as to be unaffected by humidity and moisture, while stillproviding a lightweight, rigid speaker that provides excellent sound reproduction.They are also moister resistant meaning they can be installed anywhere in yourhome or at work, even in a bathroom/kitchen.
Fitting –The speakers are fitted into a 114m cut-out with 65mm of clearance behind. Thespeakers are very easy to install and are supplied with all the fixings yourequire.
1Input to 5 Output Stereo Speaker Splitter Box
How it works – By connecting an amplifier to the splitter box youcan distribute the sound up to 5 sets of stereo speakers (10 speakers in total). You can switchindividual sets of stereo speakers on and off and you can use headphones viathe 6.35mm output on the front of the splitter box.
General – This box has a metal outer case, rubber feet on thebottom and because the build quality is excellent, it is robust anddurable. The dimensions are 260mm x 120mm x 54mm
Technical Specification:
Amp
Features:
6 selectable lineinputs
1x – Bluetooth receiver (wireless)
2x – 2 RCA/Phono (red & white) inputs
1x – 3.5mm AUX jack
1x – USB media input
1x – SD Card media input
2x 6.35mm Microphone inputs – Allows you to use as a loud hailer / public speaking/ singing System
1x FM Antenna Connections
2x – spring terminal / speaker cable (red & black) outputs
Built-in FM receiver
Sleek and compact design
Durable metal body with breathable air vents built in.
UK mains power cable supplied
Spec:
Power Supply – 230V AC, 50Hz
Power output max per channel at 4 Ohms – 55W (per side)
Power output per channel at 4 Ohms – 35W (per side)
Power output Max per channel at 8 Ohms – 40W (per side)
Power output RMS per channel at 8 Ohms – 25W (per side)
Dimensions – 200mm x 65mm x 200mm (WxHxD)
Weight – 1700g
Speakers
Features
13cm / 5″
5cm (2″) Tweet with Mylar Cone
Woofer with Polypropylene cone
6mm Spade terminal connectors
Built-In Crossover
All Fixings supplied.
Technical Specification
2-Way Speakers
Max Power – 80w
Power RMS – 40w
Frequency Response – 80Hz-18kHz
Impedance – 8 ohms
Moisture resistant
Dual Cone Speaker
Dimensions
130mm diameter, for fitting toa 114mm cut-out / Depth – 65mm
5 Port Speaker Splitter
Resistors – Internal 100ohm resistors ensure theamplifier always sees a load, even with all switches turned off. However, it isgood practice to ensure that at least one pair of stereo speakers areswitched on before the amplifier is turned on. A progressive switched resistornetwork ensures that the resistance generated is always equal to that ofthe speakers, providing that every speaker being used is of the sameresistance. For example, speakers that are made by different manufactures maybe different resistances and they should not be used together with thisdevice.
Speaker Cable
Blue line for polarity – easy connectivity (transparent outerinsulation).
99 Strands with a 0.14mm diameter per core.
Area per core = 1.5mm² (AWG 16 Approx).
CCA (copper clad aluminium)
Outer diameter per core 3.1mm
Width of 2 cores combined 6.5mm (can be easily stripped apart).
Peace of Mind – Tested toCE and RoHS standards
Further Information – If you require a slightly different system, don’t worry,we sell lots of other kits and products and we can create a kit perfect for you– including outdoor kits for gardens and external events.Please feel free to get in touch and we will alwaysdo our best to help you.
