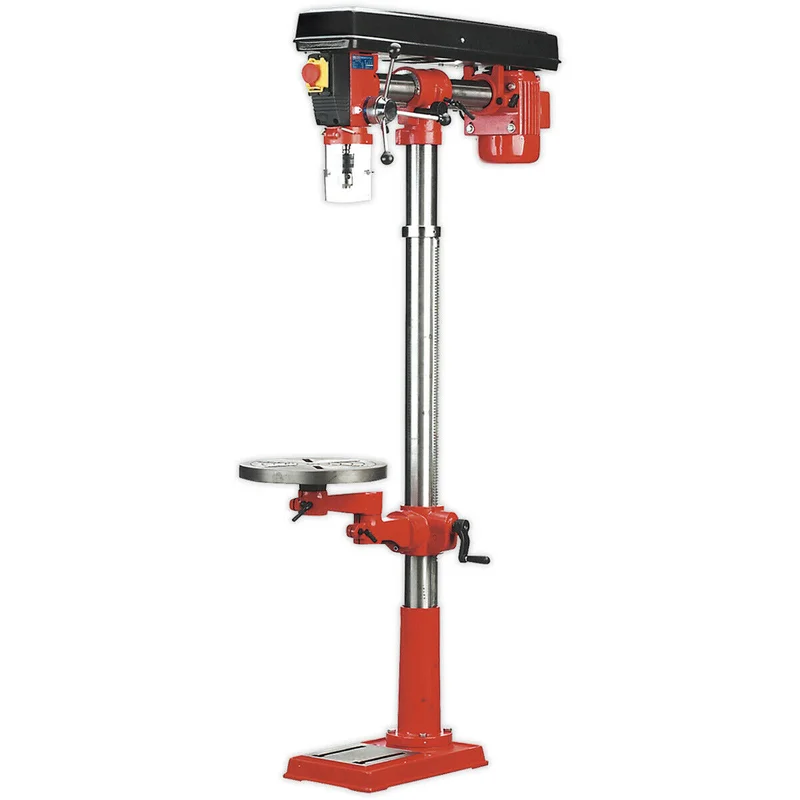

5-Speed Radial Floor Pillar Drill – 550W Motor – 1620mm Height – Heavy Duty

Description

5-Speed Radial Floor Pillar Drill – 550W Motor – 1620mm Height – Heavy Duty

Overview:

Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Also available as floor standing type –

Features:

• 16mm(5/8″) Capacity chuck, MT2.
• Fitted with no-load voltage switch and locking cover to prevent accidental starting.
• Height: 1620mm.
• Spindle Centre to Column – Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 70mm.
• Spindle Travel: 80mm.
• Weight: 59kg.

Specification:

• Base Size – 420 x 250mm
• Collar Diameter – Ø60mm
• Column Diameter – Ø70mm
• Drilling Capacity (Chuck Size) – 16mm
• Maximum Distance Spindle to Base – 1280mm
• Maximum Distance Spindle to Table – 830mm
• Motor Power – 550W
• Net Weight – 59kg
• Number of Speeds – 5
• Optional Accessories – GDMX/KC – Keyless Pillar Drill Chuck 16mm
• Overall Height – 1620mm
• Radial Arm Travel – 285mm
• Speed Range – 500-2450rpm
• Spindle Centre to Column – 420mm
• Spindle Nose Taper – MT2
• Spindle Travel – 80mm
• Supply – 230V
• Swing – 840mm
• Working Base Surface Size – 210 x 190mm
• Working Table Surface Size – Ø310mm

Further Information:
